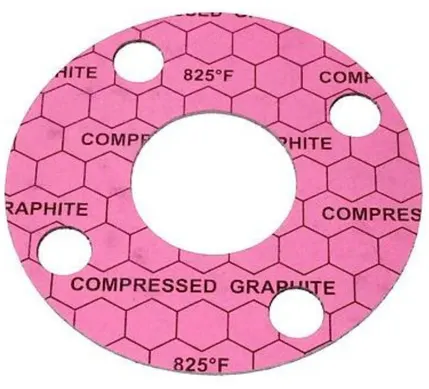

An intense pink compressed graphite/Kevlar gasket engineered for saturated steam service. Combines high adaptability to flange imperfections with strong resistance to relaxation for reliable sealing between maintenance intervals.
The Gulf Coast Glass Compressed Graphite / Kevlar Gasket is ideal for saturated steam applications, combining the properties of graphite and Kevlar for high reliability at elevated temperatures. Featuring low elastomer content, it is designed to reduce maintenance costs and minimize replacements.
Ideal for gaskets in saturated steam applications.
High adaptability
Stands out for its excellent adaptability to flange imperfections commonly found in steam applications.
High resistance to relaxation
Provides consistent reliability between intervals.
Various dimensions
Available for single-piece gaskets in large sizes, simplifying installation and maintenance.
| Material | Graphite / Kevlar |
|---|---|
| Color | Intense Pink |
| Non-stick film | A310 on both sides |
| Tolerance in thickness and dimensions | DIN 28091-1 |
| Temperature Cont. (Max.) | 360°C (440°C)* |
| Cont. Pressure (Max.) | 80 bar (100 bar)* |
*Values for 1.5 mm thickness.
| Property | Standard | Unit | Value |
|---|---|---|---|
| ID | DIN 28 091-2 | — | FA-A1-O |
| Density | DIN 28 090-2 | g/cm³ | 1.00 ± 0.05 |
| Tensile strength (Transverse) | DIN 52 910 | N/mm² | > 1.2 |
| Tensile strength (Longitudinal) | DIN 52 910 | N/mm² | > 2.0 |
| Torque retention @ 175°C | DIN 52 913 | N/mm² | 35 |
| Torque retention @ 300°C | DIN 52 913 | N/mm² | 30 |
| Compressibility | ASTM F36 J | % | < 50 |
| Recovery | ASTM F36 J | % | > 5.0 |
| ASTM IRM 903 (5hr/150°C) — weight change | ASTM F146 | % | < 45 |
| ASTM IRM 903 (5hr/150°C) — thickness increase | ASTM F146 | % | < 2 |
| ASTM FUEL B (5hr/23°C) — weight change | ASTM F146 | % | < 40 |
| ASTM FUEL B (5hr/23°C) — thickness increase | ASTM F146 | % | < 2 |
Inspect Components:
Ensure the sight glass, flanges, and gaskets are clean and free from debris, oil, or any residue.
Check Gasket Condition:
Use new Gulf Coast Glass Compressed Graphite / Kevlar Gaskets. Never reuse old gaskets, as this may compromise the seal.
Align the Gasket:
Place the gasket evenly between the sight glass and the flange. Ensure it aligns perfectly with the bolt holes and sealing surface.
Assemble Components:
Position the sight glass and flange together with the gasket in between. Insert bolts through the holes.
Tighten Bolts Gradually:
Using a torque wrench, tighten the bolts in a cross or star pattern to ensure even pressure distribution. Refer to the recommended torque values provided by the assembly manufacturer.
Inspect the Seal:
After tightening, visually inspect the assembly to ensure the gasket is properly seated and the sight glass is secure.
Perform a Pressure Test (Optional):
If required, perform a low-pressure test to verify the integrity of the seal before operating at full pressure.
Never reuse gaskets or seals. Always use a calibrated torque wrench. Not all gaskets are the same; verify their application.
Talk to our team
Contact us with your application details — pressure, media, and connections — and we will help you specify the right sight glass.
