Level Gauge Glass
GULF COAST GLASS level sight glasses made of STAINLESS STEEL allow for a view of the level in a tank. The valves are forged in one piece, which guarantees excellent resistance to pressure and more adverse conditions.
Gulf Coast Glass valves are the perfect choice for customers seeking durable, high-quality valves. With superior design and precise manufacturing, our valves are crafted to meet the highest industry standards. We offer a single type of valve that is versatile and suitable for a wide range of applications.
By having a single model that suits a wide range of applications, we were able to develop the most competitive valve on the market. We offer a high-quality product at a highly competitive price so customers don't have to cover indirect costs such as transportation, storage and tariffs typically associated with purchasing imported products.
As a result, our ZTV-25SS valves are well positioned with great acceptance throughout the North and South American markets. ZTV-25SS models also come with an upper vent, which allows operators to release gases or inject into the tank without the need to open it.

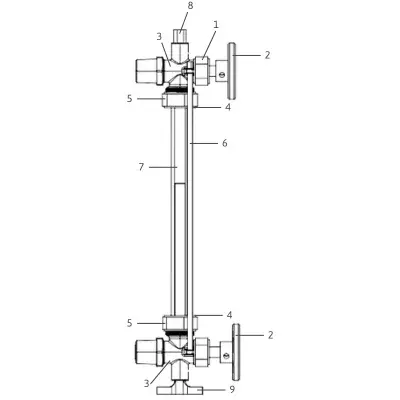

| Item | Part name | Material options |
|---|---|---|
| 1 | Stopper |
|
| 2 | Handle |
|
| 3 | Body (Upper & Lower) |
|
| 4 | Tubular Gasket |
|
| 5 | Tightening Nut |
|
| 6 | Protection Rods |
|
| 7 | Glass Tube |
|
| 8 | Vent |
|
| 9 | Drain |
|
| Connection type | 1/2" NPT or 3/4" NPT |
|---|---|
| Flow indication type | Transparent / Red line |
| Working pressure | From 0 to 250 PSI |
| Working temperature | 260°C (Option at 560°C) |
| Gaskets included | EPDM or Zyton |
| Handle | Aluminum |
| Drain | Sampler lower vent |
| Safety check | SS316 Safety Ball Check |
| Upper vent | Included — release gases or inject without opening the tank |

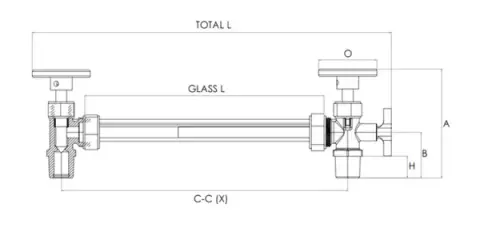

| Size | GLASS L | ROD L | TOTAL L | A | B | H | O | DRAIN |
|---|---|---|---|---|---|---|---|---|
| 1/2" | X − 2" | X + 1" | X + 2-5/8" | MAX 4" | 1-1/2" | 3/4" | 2" | 3/8"-24 |
| 3/4" | X − 2-1/4" | X + 1" | X + 2-7/8" | MAX 4-1/8" | 1-5/8" | 3/4" | 2" | 3/8"-24 |
How to estimate length of glass tube: Tube length = Center-to-Center − 2" How to estimate length of protective rods: Rod length = Center-to-Center + 1" How to estimate total length of level equipment: Total length = Center-to-Center + 2-5/8"
Talk to our team
Contact us with your application details — pressure, media, and connections — and we will help you specify the right sight glass.
