Sight Flow Indicators

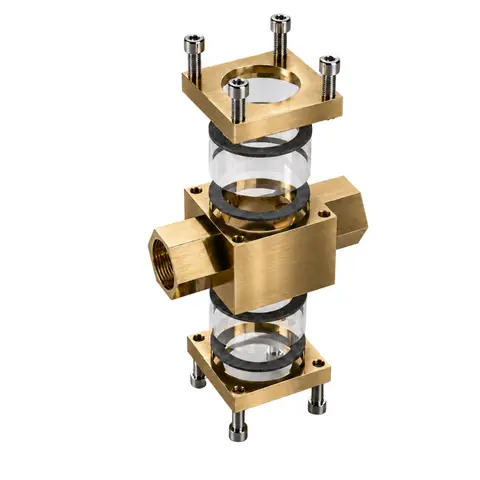

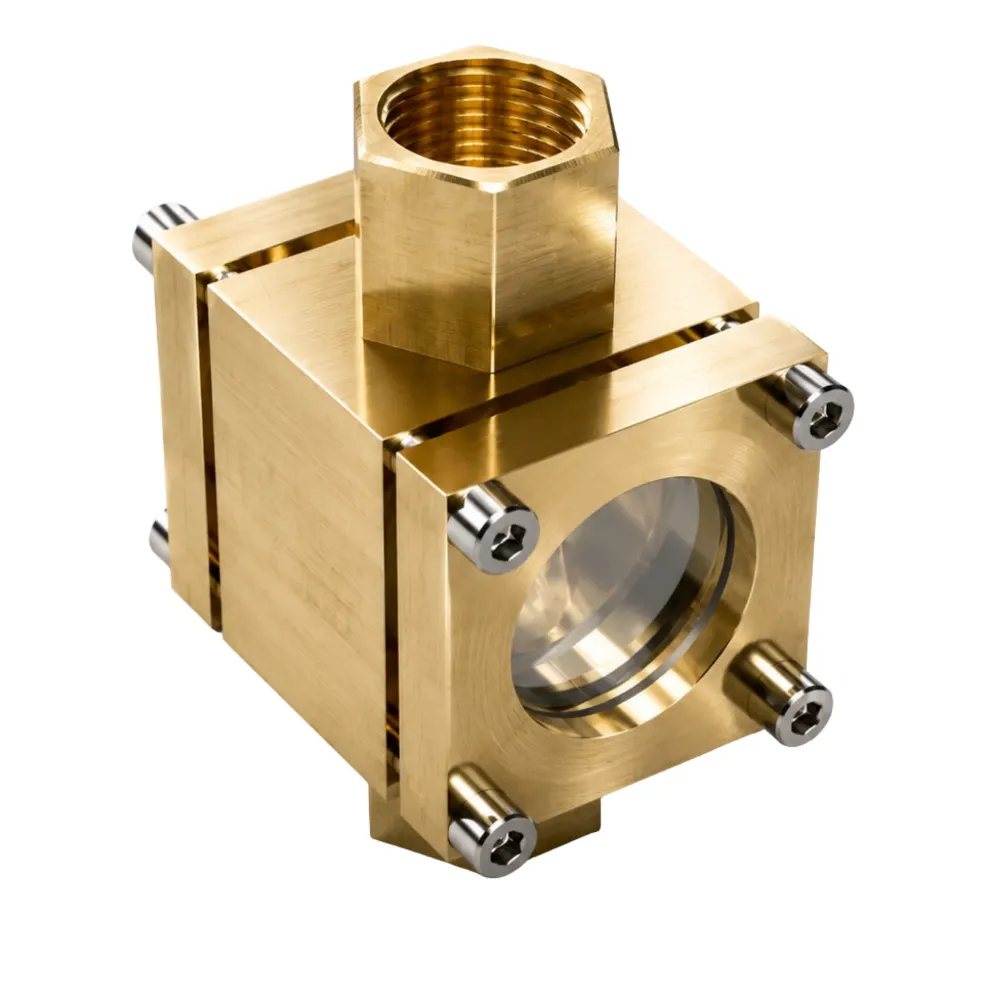

Sight Flow Indicators are devices used in piping systems to provide a visual indication of the flow of liquids, gases, or slurries within the system. They are crucial for monitoring and verifying the flow and condition of the media without disrupting the process. These brass double window sight flow indicators allow for a cost-effective way to monitor your pipe without sacrificing reliability or quality, as they are made from one single forged unit.
Full View
For easily visible fluids, with color, turbulence, and clarity. They easily detect the presence of solids or foreign products in the handled fluid. They can be mounted in any position.
Flapper
Internally mounted with a PTFE flapper, where the position indicates the direction of the fluid. Used in clear fluids that are difficult to observe; they are normally mounted horizontally, and only in vertical positions with ascending fluids.
Drip
Allow for the formation of drops of low-volume or intermittent fluids, for example in unitary distillation operations. They are mounted only in a vertical position and descending flows.
Spinner
Internally mounted with a PTFE spinner that rotates with the passage of the fluid, widely facilitating observation of dark, translucent, and clear fluids that are difficult to observe with the naked eye. They can be mounted interchangeably in any horizontal or vertical position.
These brass double window sight flow indicators offer a cost-effective way to monitor your pipe without sacrificing reliability or quality, as they are made from one single forged unit.
| Item | Part name | Material options |
|---|---|---|

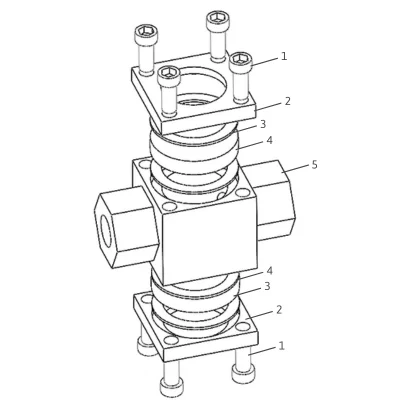

| 1 | Allen Bolts |
|
| 2 | Covers |
|
| 3 | Gaskets |
|
| 4 | Sight Glasses |
|
| 5 | Body |
|
| Measure | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" |
|---|---|---|---|---|---|---|---|
| A (Dist between faces) | 3.25" (82.55mm) | 3.25" (82.55mm) | 3.25" (82.55mm) | 4.25" (107.95mm) | 4.25" (107.95mm) | 5.25"(133.35mm) | 5.25"(133.35mm) |
| B (Dist between caps) | 2.25" (57.15mm) | 2.25" (57.15mm) | 2.25" (57.15mm) | 3.25" (82.55mm) | 3.25" (82.55mm) | 3.5"(88.9mm) | 3.5"(88.9mm) |
| C (Max Width) | 1.75" (44.45mm) | 1.75" (44.45mm) | 1.75" (44.45mm) | 2.25" (57.15mm) | 2.25" (57.15mm) | 3"(76.2mm) | 3"(76.2mm) |
| D (Visible Diameter) | 1" (25.40mm) | 1" (25.40mm) | 1" (25.40mm) | 1.5" (38.10mm) | 1.5" (38.10mm) | 2" (50.8mm) | 2" (50.8mm) |
Talk to our team
Contact us with your application details — pressure, media, and connections — and we will help you specify the right sight glass.
