Sight Windows
The Gulf Coast Glass Weld-to-Tank Sight Glass is designed to provide a clear and reliable view of the internal processes within industrial tanks and vessels. This sight glass is engineered for durability and efficiency, making it an essential component for industries requiring real-time monitoring of liquid levels, temperatures, and other critical factors.
The Gulf Coast Glass Weld Neck Sightglasses are ideal for use in various industries, including chemical processing, oil and gas, pharmaceuticals, food and beverage, and more. They allow for the continuous observation of processes where safety and precision are paramount. Weldable tank sight glasses allow for a total view of the inside of a process. Depending on the fluid temperature and pressure to work with, a recommendation can be made on the best material of manufacture, types of crystals and types of gaskets.
Ease of Installation
The ZW15 is designed for quick and easy installation, reducing downtime and labor costs during setup. Its intuitive design ensures that even complex installations can be completed efficiently.
Aesthetic Design
The screws are positioned on the upper flange, giving the ZW15 a clean and professional appearance. This makes it an excellent choice for installations where visual appeal is important.
Customizable Options
While the ZW15 comes in standard sizes, it offers customization options to meet specific project requirements, such as adjustments to metal thickness, glass type, and gasket materials.
Cost-Effective Solution
The ZW15 provides a reliable and durable sight glass at a competitive price, making it an excellent option for industries seeking to balance performance and cost-efficiency.
Durable Construction
Built from high-quality materials such as carbon steel or stainless steel, the ZW15 is resistant to corrosion and wear, ensuring long-lasting performance even in demanding environments.
Versatility
Suitable for a wide range of industrial applications, from chemical processing to food and beverage production, the ZW15 can be adapted to various operating conditions and requirements.
Optional LED Lighting

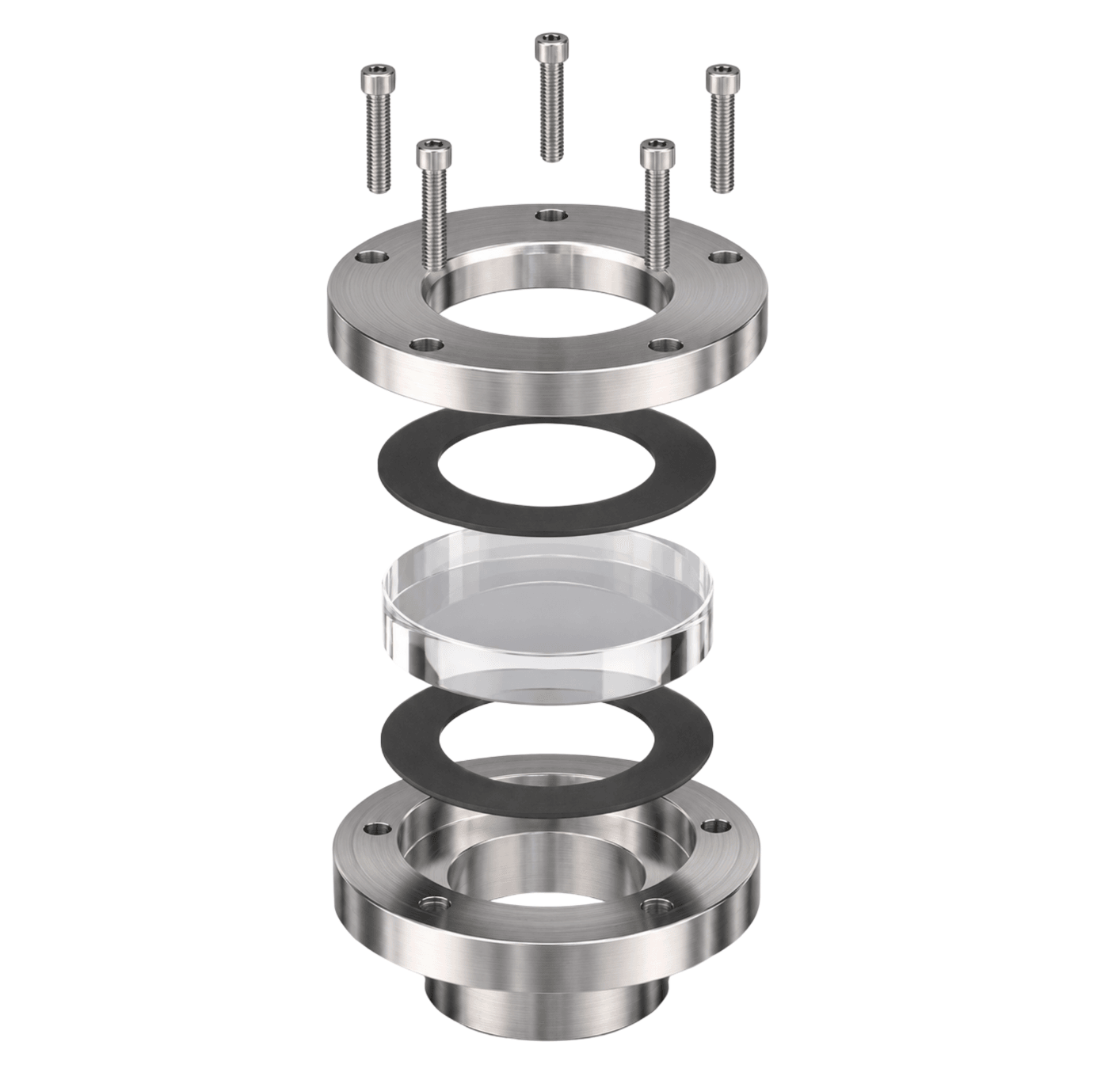

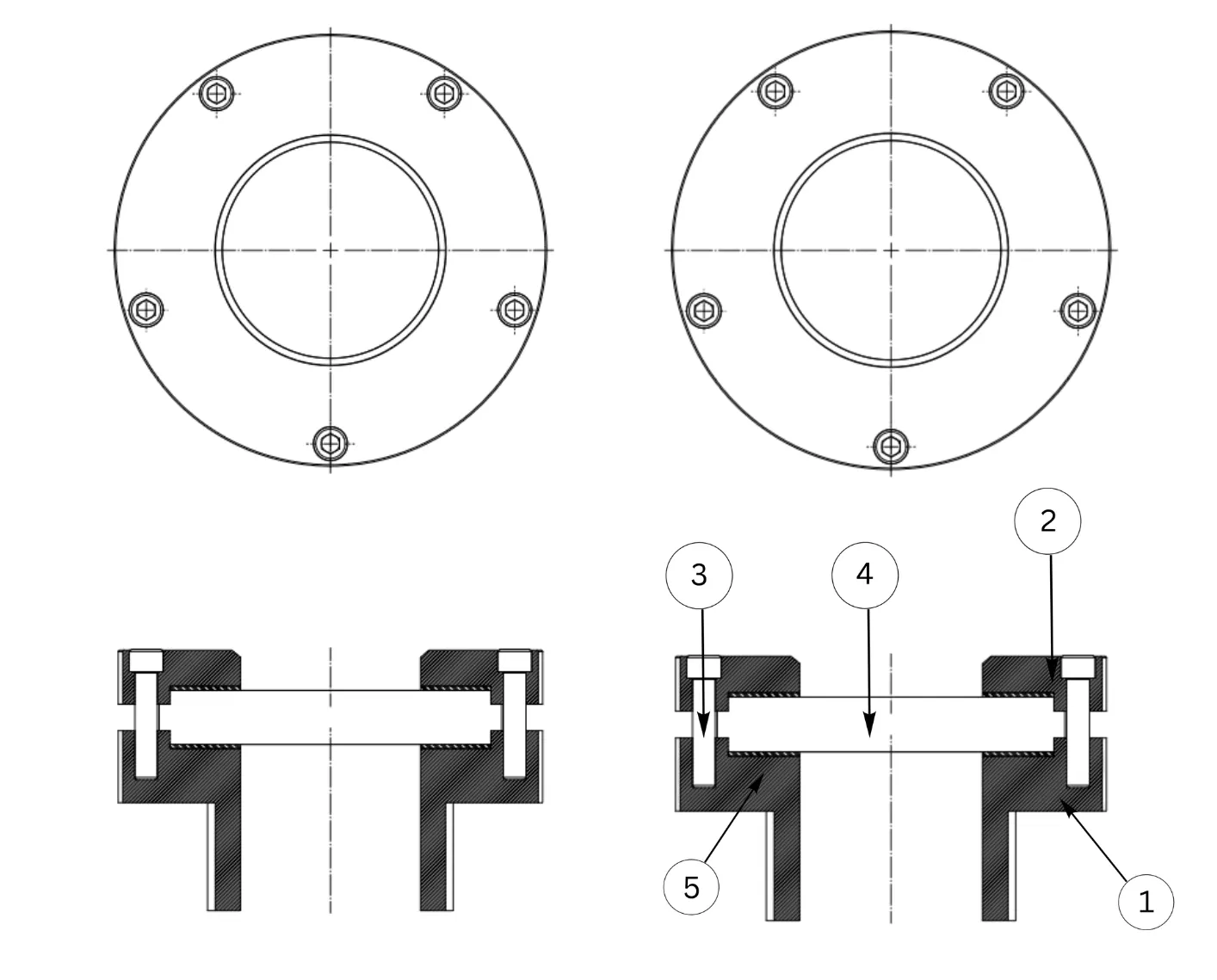

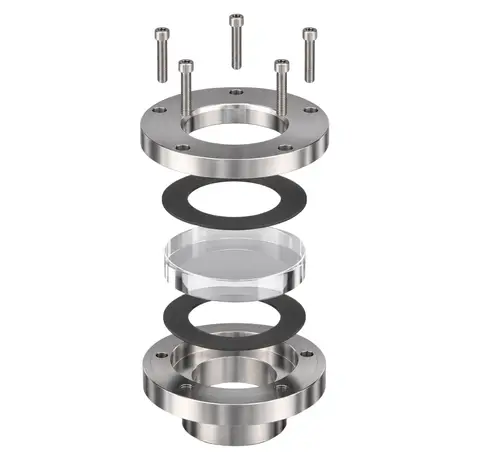

For installations in dark environments, the ZW15 can be equipped with an optional LED light to enhance visibility and safety. The light is protected by a polycarbonate layer to prevent damage from potential explosions inside the tank. Weld-Neck Sight Glass- Parts and Materials
| Item | Part name | Material options |
|---|---|---|
| 1 | Cover Flange |
|
| 2 | Weld Pad |
|
| 3 | Sight Glass (max temp) |
|
| 4 | Gaskets *(max temp) |
|
| 5 | Bolts |
|
Welding Neck Sight Glass -
| ID | 3" | 5" | 3.5" | 4" | 6" | 3.5" | 5" |
|---|---|---|---|---|---|---|---|
| A (Visible Diam) | 3" (76.20 mm) | 5" (127.00 mm) | 3.5" (88.90 mm) | 4" (101.6 mm) | 6" (152.40 mm) | 3.5" (88.90 mm) | 5" (127.00 mm) |
| B (Total Diam) | 7.5" (190.50 mm) | 4" (101.60 mm) | 6" (152.40 mm) | 9" (228.60 mm) | 4.5" (114.30 mm) | 7" (177.80 mm) | 10" (254.00 mm) |
| C (Total thickness) | 5" (127.00 mm) | 8" (203.20 mm) | 11" (279.40 mm) | 5" (127.00 mm) | 9" (228.60 mm) | 12" (304.80 mm) | 6" (152.40 mm) |
Talk to our team
Contact us with your application details — pressure, media, and connections — and we will help you specify the right sight glass.
